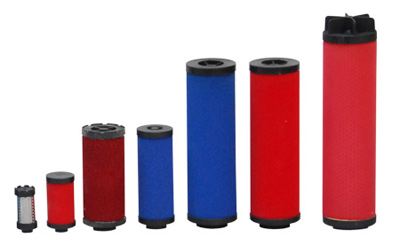

Micro Filters

These filters are divided into four groups:

Pre-Filters
Micro Filters
Dust Filters
Carbon Filters (Active carbon towers)

Selecting the suitable filters for the element and housing of your compressors maintains reliable equipment that using technical methods make it possible for you to convert impure and low quality air to such high quality, pure and clean air that can be used even in food and drugs industries that are sensitive to the air having contact with the products.

Micro Filters Specification Table

دمای کارکرد C	فشار کارکرد Bar	حداکثر میزان هوادهی		اتصالات Inch	مدل
دمای کارکرد C	فشار کارکرد Bar	m3/Min	cfm	اتصالات Inch	مدل
1-66	1-60	0.54	18.9	1/2	HS 540
1-66	1-60	1.8	64	3/4	HS 1800
1-66	1-60	3.6	127	1	HS 3400
1-66	1-60	9	317	1 1/4	HS 8700
1-66	1-60	13.3	469	1 1/2 - 2	HS 13200
1-66	1-60	28.5	801.13	3-4	HS 28200

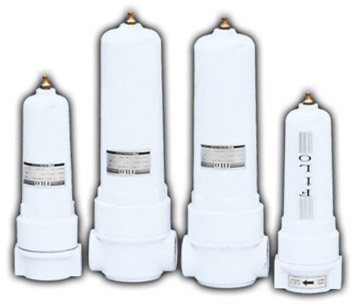

FK Series

Include standard elements with high efficiency, durability and easy to replace
Optional filter life-time indicator can be added
Housing durability due to
usage of high quality raw material and standard manufacturing procedures applied

اندازه اتصال Inch	ظرفیت		مدل
اندازه اتصال Inch	m3	ppm	مدل
1/2"	1.2	0.1	FK 1200
1/2"	1.2	0.01	FK 1200/1
3/4"	1.6	0.1	FK 1600
3/4"	1.6	0.01	FK 1600/1
1"	3.6	0.1	FK 3600
1"	3.6	0.01	FK 3600/1
1 1/2"	6.0	0.1	FK 6000
1 1/2"	6.0	0.01	FK 6000/1
2"	88.5	0.1	FK 8500
2"	8.5	0.01	FK 8500/1
2"	12	0.1	FK 12000
2"	12	0.01	FK 12000

We have been able to produce these series that operate
with above 40 bar pressure.
