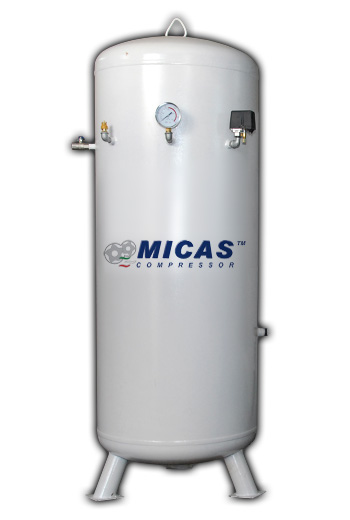

Tank (RS Series)

Design and manufacturing of our tanks is according to ASME SEC8 standard. Use and installation of this product also requires its own standards which by applying such standards with accuracy we have offered a nicely designed, reliable and different product to you.

The series of tanks are featured with: inspection hole (Operator can inspect the inside of the tank), 3 layers of epoxy interior paint covering (200 micron), industrial exterior paint covering, easy to separate and discharge air impurities from inside the tank and the capability of installing high quality accessories on the tank.
Welding of the tanks done by automatic welding machinery and also by our welding experts.

All tanks produced pass a hydro test, and there is this capability to run other tests such as X-Ray based on demand.

Dimensions																	Actual Volume (Liter)	Model
W	Y	S	P	Z	T	M	N	K	R	G	F	E	D	C	B	A
mm	mm	inch	inch	mm	mm	mm	mm	inch	mm	inch	inch	inch	mm	mm	mm	mm
5	5	1	Null	40	700	850	600	1/2	200	1/2	1/2	1/2	600	1900	1750	1500	0.1	RS 500
6	6	1 1/2	Null	50	570	1400	700	1/2	200	1/2	3/4	1	800	2200	2000	1500	0.01	RS 1000
8	8	1 1/2	16	60	640	1900	800	1/2	200	1/2	3/4	1	900	2500	2300	2000	0.1	RS 1
8	8	2	16	60	780	1900	800	1/2	250	1/2	3/4	1	1100	2550	2300	2000	0.01	RS 2000
8	8	2	16	60	880	1900	850	1/2	250	1/2	3/4	1	1250	2550	2300	2000	0.1	RS 500
8	10	2-3	16	60	880	2500	850	1/2	300	1/2	3/4	1	1250	3100	2800	2500	0.01	RS 3000
10	10	2-4	16	80	980	3000	900	1/2	350	1/2	3/4	1	1400	3700	3350	3000	0.1	RS 5000
12	12	4	16	80	980	5000	900	1/2	400	1/2	3/4	1	1400	5700	5300	5000	0.01	RS 8000
14	14	4	16	80	1140	5000	900	1/2	400	1/2	3/4	1	1600	5800	5400	5000	0.1	RS 10000
